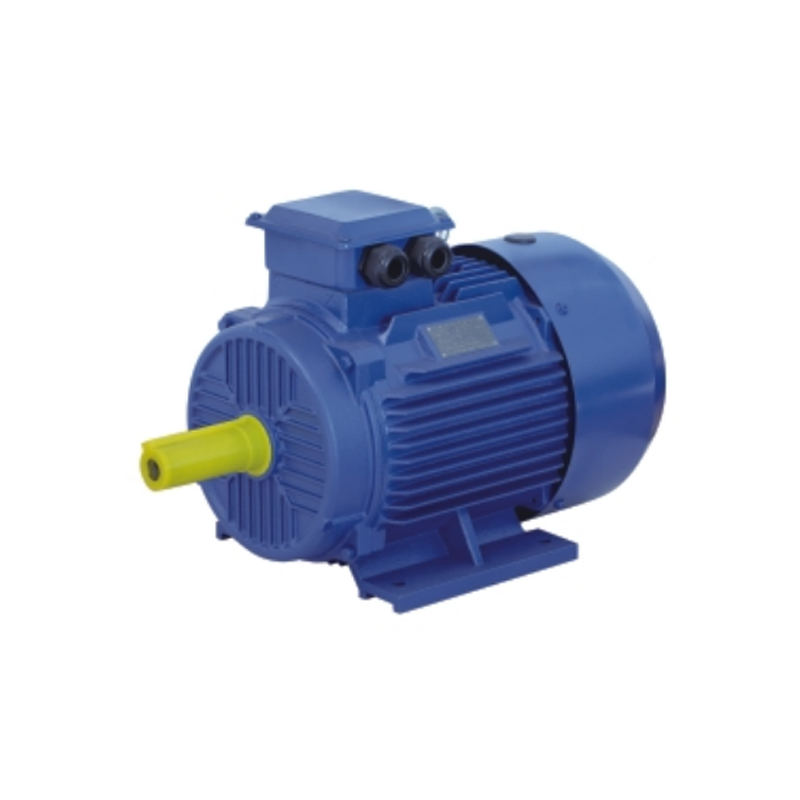

YE3系列三相異步電動機

YE3系列三相異步電動機是采用新材料、新工藝制造的全封閉鼠籠式三相異步電動機,其效率指標符合GB18613-2020《電動機能效限定值及能效等級》規定的3級能效的效率值,相當于1EC60034-30-1的1E3效率值。

本系列電動機的提高效率設計,符合國家對行業提出的節能降耗要求。本系列電動機具有節能效果好、結構合理、防護等級高、溫升裕度大等特點,適用于機床、風機、水泵、包裝機械、運輸機械等各種應用場合,是Y2、YE2系列電動機的理想換代產品。


如需更多信息,請發送電子郵件或撥打我們的熱線電話

jiawofanny@outlook.com

產品描述

YE3系列電動機技術參數Technical parameters of YE3 series motors
型號
Type
額定功率Output滿載時Full Load空載噪音NoisedB(A)空載振動Vibration(mm/s)堵轉轉矩LRT
額定轉矩RLT
最大轉矩BDT
額定轉矩RLT
堵轉電流LRA
額定電流RLA
重量weight(kg)
(kw)(HP)電流Current(A)轉速Speed(r/min)效率Eff(%)功率因數P.F.(Cosφ)
同步轉速3000 r/min(2極)Synchronous Speed3000r/min(2p)
YE3-80M1-20.7511.72285580.70.82621.62.32.3718
YE3-80M2-21.11.52.43285582.70.83621.62.22.37.619
YE3-90S-21.523.22287584.20.84671.62.22.37.918
YE3-90L-22.234.58287585.90.85671.62.22.37.934
YE3-100L-2346288087.10.87741.62.22.38.538
YE3-112M-245.57.8290088.10.88771.62.22.38.545
YE3-132S1-25.57.510.6290089.20.88791.622.38.563
YE3-132S2-27.51014.4290090.10.88791.622.38.569
YE3-160M1-2111520.6294091.20.89812.222.38.5108
YE3-160M2-2152027.9294091.90.89812.222.38.5123
YE3-160L-218.52534.2294092.40.89812.222.38.5137
YE3-180M-2223040.5295592.70.89832.222.38.5177
YE3-200L1-2304054.9296593.30.89842.222.38.5245
YE3-200L2-2375067.4296593.70.89842.222.38.5249
YE3-225M-2456080.82970940.9862.222.38293
YE3-250M-2557598.5297594.30.9892.222.38405
YE3-280S-275100134297594.70.9912.21.82.37.5575
YE3-280M-2901251602975950.9912.21.82.37.5600
YE3-315S-2110150195298095.20.9922.81.82.37.5874
YE3-315M-2132180234298095.40.9922.81.82.37.5952
YE3-315L1-2160220279298095.60.91922.81.82.37.5995
YE3-315L2-2200270349298095.80.91922.81.82.27.51086
YE3-355M1-2220300383298095.80.911002.81.62.27.51690
YE3-355M2-2250340436298095.80.911002.81.6227.51740
YE3-355L1-2280380488298095.80.911002.81.62.27.51908
YE3-355L2-2315430549298095.80.911002.81.62.27.51735
同步轉速1500r/min(4極)Synchronous Speed1500r/min(4P)
YE3-80M1-40.550.751.38140080.80.75561.62.42.36.617
YE3-80M2-40.7511.84140082.50.75561.62.32.36.619
YE3-90S-41.11.52.61142584.10.76591.62.32.36.825
YE3-90L-41.523.47142585.30.77591.62.32.3730
YE3-100L1-42.234.76144086.70.81641.62.32.37.637
YE3-100L2-4346.3145087.70.82641.62.32.37.643
YE3-112M-445.58.4145088.60.82651.62.22.37.865
YE3-132S-45.57.511.2145589.60.83711.622.37.968
YE3-132M-47.51015145590.40.84711.622.37.582
YE3-160M-4111521.5146591.40.85732.22.22.37.7114
YE3-160L-4152028.8146592.10.86732.22.22.37.8137
YE3-180M-418.52535.3147092.60.86762.222.37.8196
YE3-180L-4223041.81475930.86762.222.37.8200
YE3-200L-4304056.6147593.60.86762.222.37.3260
YE3-225S-4375069.6148093.90.86782.222.37.4306
YE3-225M-4456084.4148094.20.86782.222.37.4336
YE3-250M-45575103148094.60.86792.22.22.37.4423
YE3-280S-4751001361485950.88802.222.36.9600
YE3-280M-490125163148595.20.88802.222.36.9615
YE3-315S-4110150197148595.40.89882.822.27887
YE3-315M-4132180236148595.60.89882.822.271058
YE3-315L1-4160220285148595.80.89882.822.27.11075
YE3-315L2-42002703521485960.9882.822.27.11180
YE3-355M1-42203003871490960.9952.822.27.11570
YE3-355M2-42503404401490960.9952.822.27.11692
YE3-355L1-42803804921490960.9952.822.27.11642
YE3-355L2-43154305541490960.9952.822.27.11795
同步轉速1000 r/min(6極)Synchronous Speed1000r/min(6P)
YE3-80M1-60.370.51.0988573.50.7541.61.92615
YE3-80M2-60.550.751.588577.20.72541.61.92.1617
YE3-90S-60.7512.0393578.90.71571.622.1626
Ye3-90L-61.11.52.83940810.73571.622.1631
YE3-100L-61.523.7894582.50.73611.622.16.530
YE3-112M-62.235.495084.30.74651.622.16.652
YE3-132S-6347.296085.60.74691.622.16.863
YE3-132M1-645.59.596086.80.74691.622.16.874
YE3-132M2-65.57.512.7960880.75691.622.1782
YE3-160M-67.51016.297089.10.79732.222.17104
YE3-160L-6111523.197090.30.8732.222.17.2163
YE3-180L-6152030.997591.20.81732.222.17.3166
YE3-200L1-618.52537.897591.70.81732.222.17.3230
YE3-200L2-6223044.897592.20.81732.222.17.4230
YE3-225M-6304059.198592.90.83742.222.16.9294
YE3-250M-6375071.798593.30.84762.222.17.1385
YE3-280S-6456085.898593.70.857822227.3460
YE3-280M-6557510398594.10.86782.2227.3481
同步轉速1000r/min(6極)Synchronous Speed1000r/min(6P)
YE3-315S-67510014399094.60.84832.8226.6844
YE3-315M-69012517099094.90.85832.8226.71055
YE3-315L1-611015020799095.10.85832.8226.7981
YE3-315L2-613218024499095.40.86832.8226.81105
YE3-355M1-616022029699095.60.86852.81.826.81524
YE3-355M2-620027036599095.80.87852.81.826.81658
YE3-355L1-622030040199095.80.87852.81.826.81908
YE3-355L2-625034045699095.80.87852.81.826.82140
同步轉速750r/min(8極)Synchronous Speed750r/min(8P)
YE3-80M1-80.180.250.7664558.70.61521.61.81.95.217
YE3-80M2-80.250.350.9764564.10.61521.61.81.95.718
YE3-90S-80.370.51.3367069.30.61561.61.81.96.222
YE3-90L-80.550.751.88670730.61561.61.825.928
YE3-100L1-80.7512.27680750.67591.61.826.233
YE3-100L2-81.11.53.1268077.70.69591.61.826.239
YE3-112M-81.524.0969079.70.7611.61.826.744
YE3-132S-82.235.770581.90.71641.61.826.761
YE3-132M-8347.570583.50.73641.61.826.972
YE3-160M1-845.59.872084.80.73682.21.926.9105
YE3-160M2-85.57.513.172086.20.74682.21.926.9121
YE3-160L-87.51017.472087.30.75682.21.926.6138
YE3-180L-8111525.273088.60.75702.2226.6187
YE3-200L-8152033.573089.60.76732.2226.8242
YE3-225S-818.5254173090.10.76732.21.926.8286
YE3-225M-8223047.373090.60.78732.21.927319
YE3-250M-8304063.274091.30.79752.21.926.7418
YE3-280S-8375077.573591.80.79762.21.926.7539
YE3-280M-8456093.973592.20.79762.21.926.7594
YE3-315S-8557511273592.50.81822.81.826.8902
YE3-315M-87510015173593.10.81822.81.826.31045
YE3-315L1-89012517973593.40.82822.81.826.41056
YE3-315L2-811015021873593.70.82822.81.826.41166
YE3-355M1-8132180260740940.82892.81.826.41712
YE3-355M2-816022031474094.30.82892.81.826.41848
YE3-355L1-818525035874094.50.83892.81.826.41900
YE3-355L2-820027038774094.60.83892.81.826.41980
同步轉速600r/min(10極)Synchronous Speed600r/min(10P)
YE3-315S-10456099.1590920.75822.81.526.2857
YE3-315M-105575121590920.75822.81.526.2993
YE3-315L1-107510016259092.80.76822.81.525.81030
YE3-315L2-1090125191590930.77822.81.525.91108
YE3-355M1-1011015023059093.30.78902.81.3261626
YE3-355M2-1013218027459093.80.78902.81.326.11756
YE3-355L1-1016022033259093.80.78902.81.326.11881
YE3-355L2-1018525038459093.80.78902.81.326.11920
